2.5" 63mm Vertical Stainless Steel Pressure Gauge | 0-1.6MPa | Bayonet Ring

Product Overview: Precision Panel-Mount Pressure Gauge

Our 2.5-inch (63mm) Vertical Stainless Steel Pressure Gauge combines professional-grade accuracy with convenient panel-mount design. Featuring a 0-1.6MPa / 0-16kgf/cm² dual scale and integrated bayonet ring, this vertical manometer delivers surge-dampened readings for reliable performance in industrial applications.

Key Features & Benefits

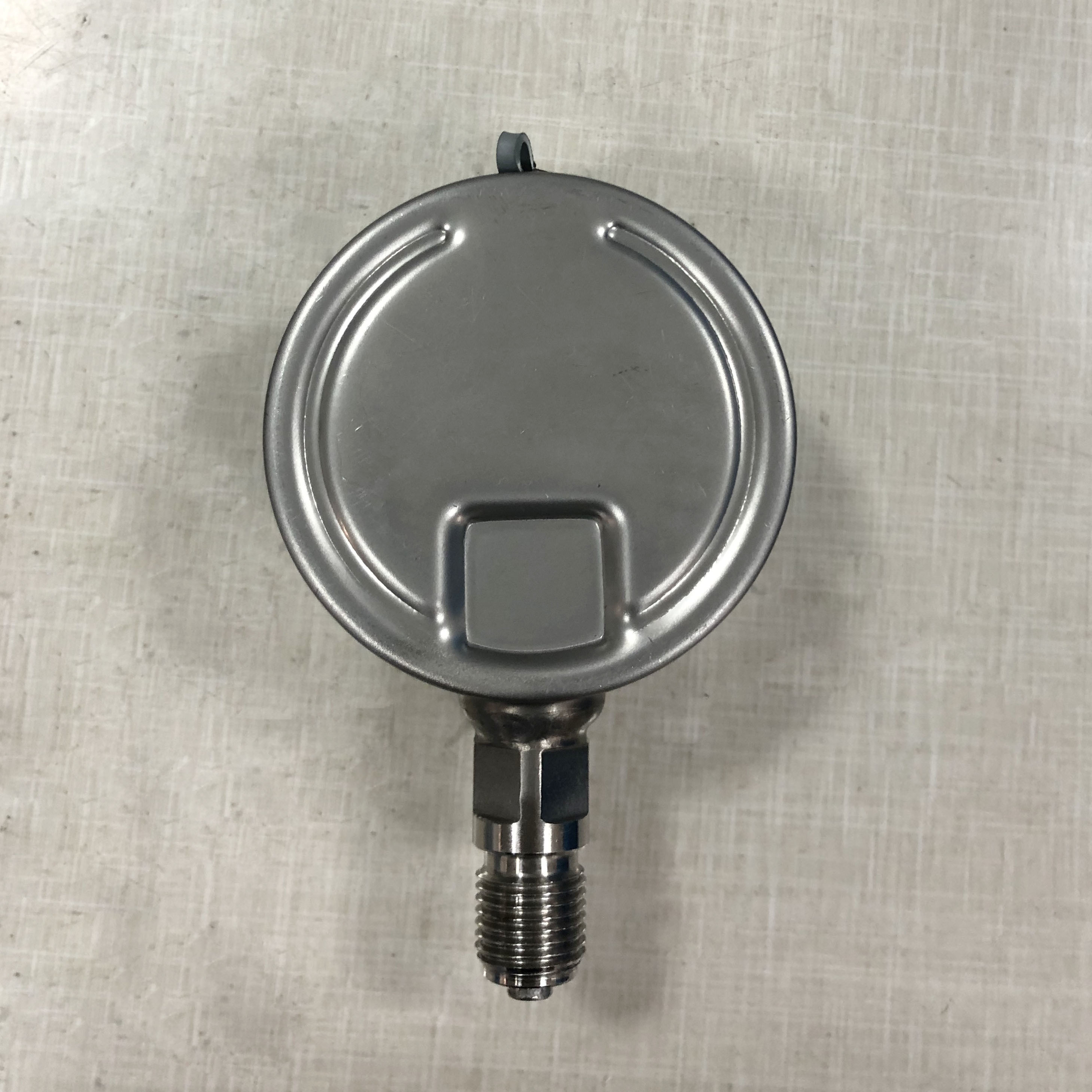

• Vertical Panel Mount: The vertical manometer design allows for flush installation on control panels with bottom connection—perfect for space-constrained instrument layouts.

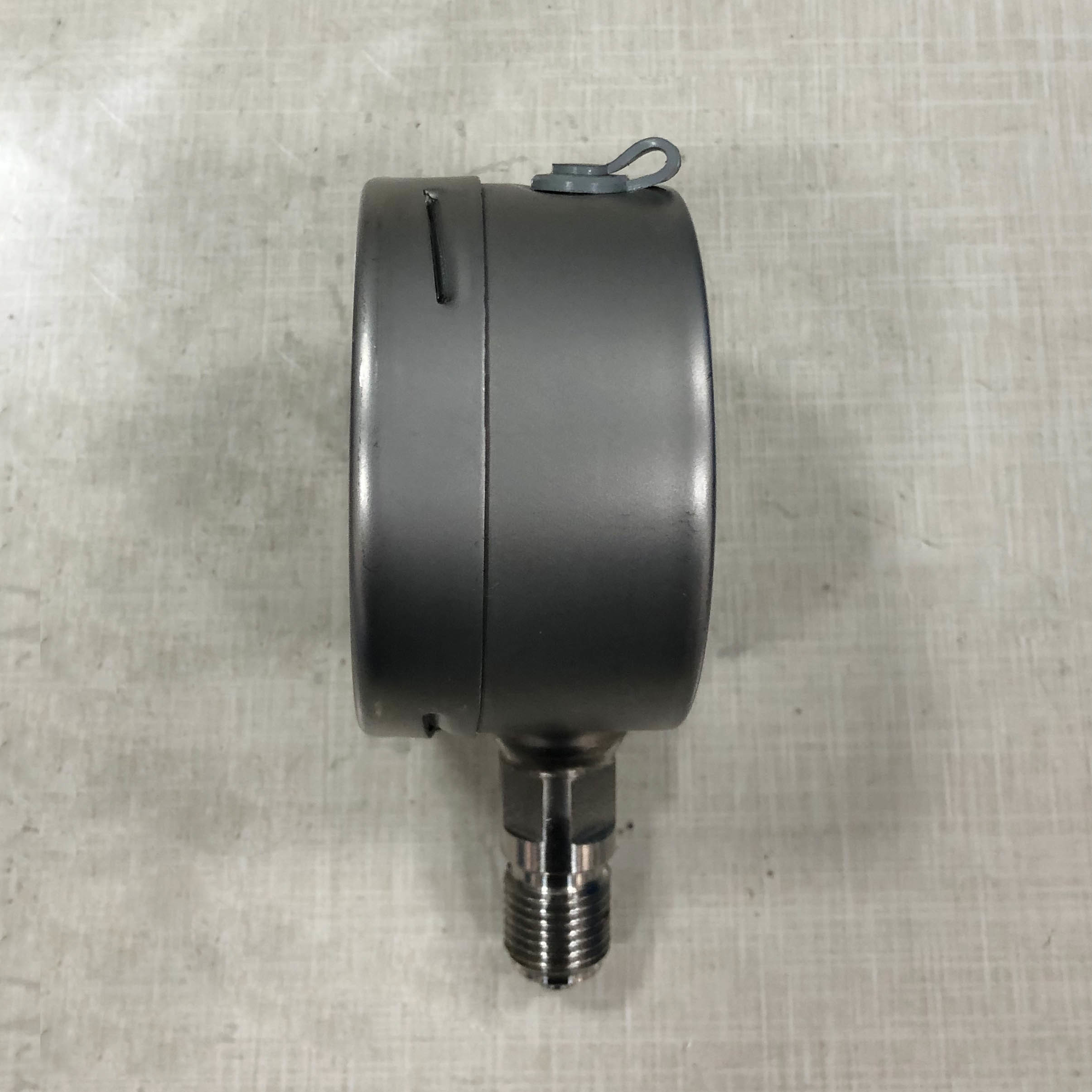

• Bayonet Locking Ring: The secure bezel ring pressure gauge features a quarter-turn bayonet mechanism that prevents loosening from vibration, ensuring long-term reliability.

• Surge Dampened: Internal design smooths pressure spikes and pulsation for accurate, stable readings.

• All Stainless Steel: Corrosion-resistant construction for demanding industrial environments.

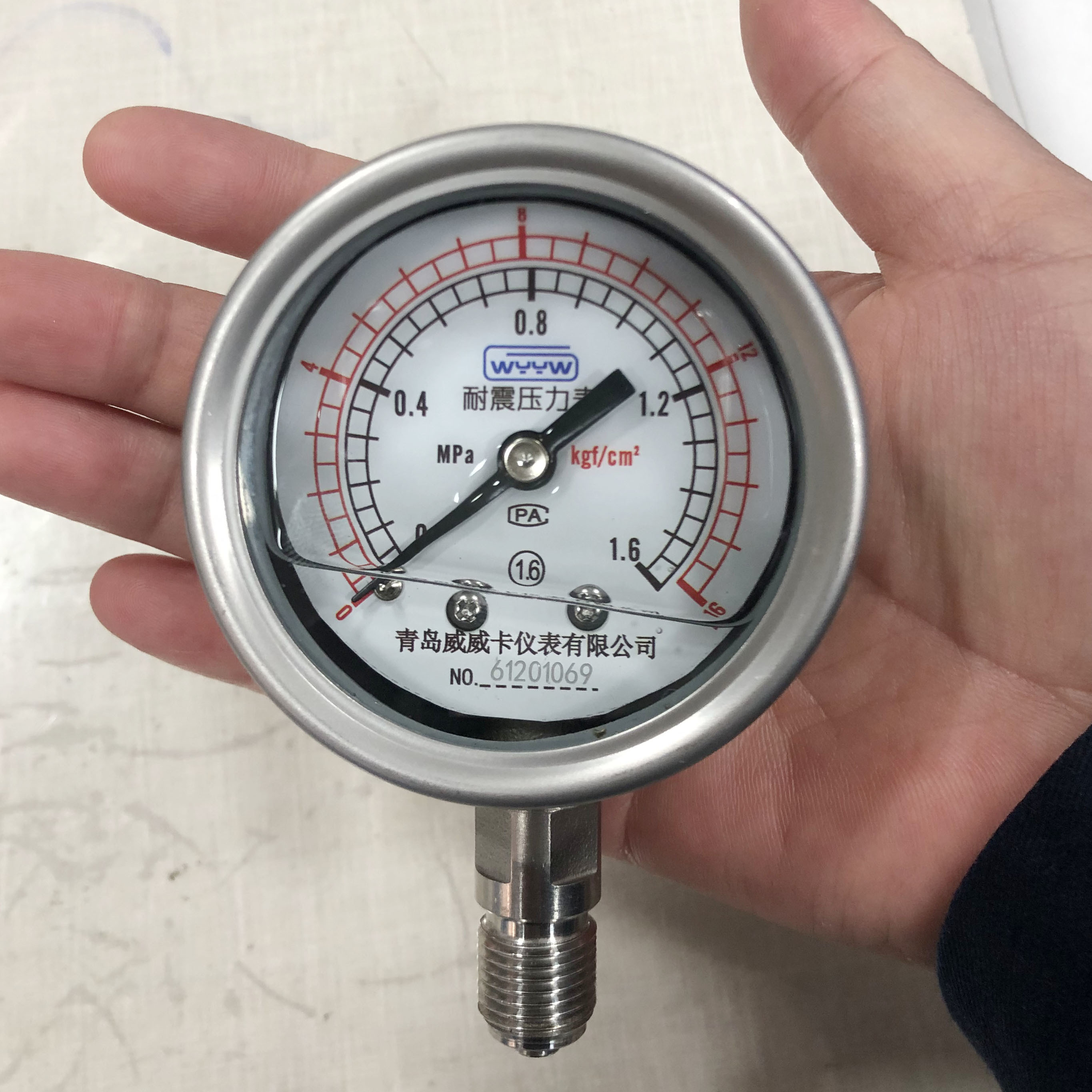

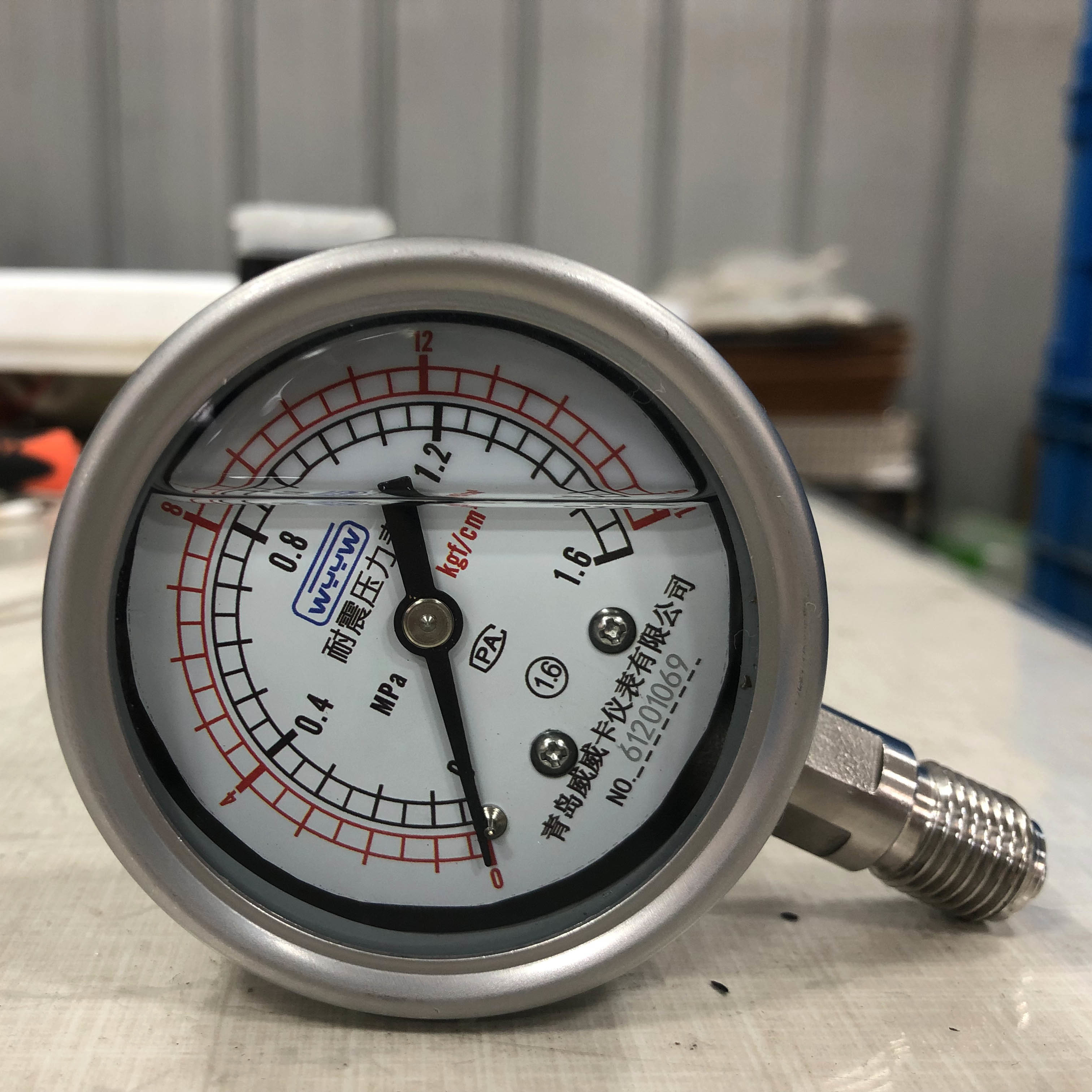

• Dual Scale Display: Read pressure in both MPa and kgf/cm² on one clear dial.

Technical Specifications

Typical Applications

• Industrial control panels and consoles

• Hydraulic and pneumatic systems

• Pump and compressor monitoring

• Process control panels

• OEM machinery

Ordering & Technical Support

For panel-mount pressure solutions:
